Standardised BMS control panel
Evometrix: BMS control panels in 10 to 20 working days
Pre-designed, pre-drawn and refined over many builds. Drawings in two working days, delivery in 10 to 20 working days, and half the programming time on site.
10 to 20 working days
Standard delivery from order.
Drawings in 2 days
Layout and component list ready for your approval.
Up to 95 points
5 DI, 4 DO, 5 UI, 4 AO per ISMA module; expandable.
Six controller families
Trend, Siemens, Schneider, Tridium, Delta, Sauter.

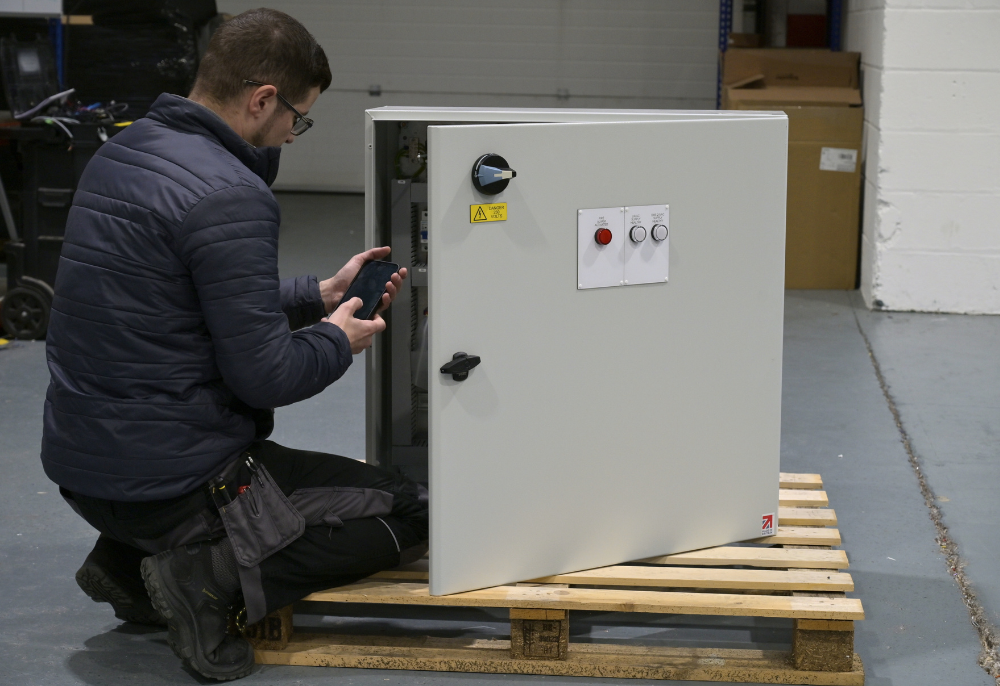

Evometrix is a BMS panel we designed once, properly, and build repeatedly. Because the drawings exist and have been reviewed and refined, you get a layout and component list within two working days and the panel within 10 to 20 working days. On site, a design your engineers have seen before cuts commissioning and programming time roughly in half.
What is in the box
Schneider mild steel enclosure with a removable door, 25A Socomec isolator, double RCD socket, panel light, lamp test, surge protection, WAGO disconnect terminals, a Brainbox five-port network switch, ISMA IO, and relay-protected digital inputs and outputs. Custom lamps, switches and labelling to your project. 10V DC is available for 0-10V equipment.
What you free-issue
Only the controller, and occasionally the HMI. Both can be fitted on site or by us. Everything else, including the switch and IO, is supplied and fitted.
Modular by design
Add panels for new areas, floors or extensions and connect the sensors. A non-bespoke design means no forgotten elements and fewer errors at commissioning.
Specification
| Reference model | Evometrix C018 |
|---|---|
| Supply | 230V 1ph or 400V 3ph, specify on ordering |
| Control circuit | 24V AC, with 24V DC for the controller |
| IO | 5 digital inputs (up to 3 hardwired interlocks), 4 digital outputs, 5 universal inputs, 4 analogue outputs; ISMA MIX-18-IP |
| Network | Brainbox 5-port switch |
| Controllers | Trend, Siemens, Schneider, Tridium, Delta, Sauter |
| Protection | Type 2+3 surge protection; relay-protected DIs and DOs |
| Form | Form 1 or Form 2 |
| Enclosure | Schneider powder-coated mild steel, removable door |
| Dimensions | 1200 x 600 x 300mm |
| Rating | IP55, indoor use |
| Spare capacity | Minimum 50% trunking, 20% DIN rail |
| Documentation | Wiring diagram, datasheet, test certificate |
| Warranty | 12 months |
Every panel ships with its wiring diagram, a test certificate and a 12-month warranty.
Price and lead time
Fixed price per panel. Request a quote with your controller type and point count.
10 to 20 working days. Drawings in 2 working days.
