Pump control panels
Pump control panels for wastewater, drainage and lift stations
Panels for 1 to 6 pumps, direct-on-line to inverter, built in Stoke-on-Trent and held in stock.
Stock for next day
Standard single and dual DOL wastewater panels are held in stock. Order before noon, on site tomorrow.
1 to 6 pumps
DOL to 24A, star/delta to 55A, inverter driven from 0.75kW to 75kW per pump.
Any supply
Single phase 230V, three phase 400V, with or without neutral. Specify when ordering.
BMS and telemetry ready
Volt-free contacts for run, trip and high level on every panel. Telemetrix adds cloud monitoring.
A G&G pump control panel starts and protects one to six pumps from float switches or a 4-20mA level sensor, with automatic duty changeover, a high level alarm and volt-free signals for BMS or telemetry. Standard wastewater panels are on the shelf for next-day despatch; everything else is built to order in 10 to 20 working days.
The range
Four families cover most pumping stations. All share the same components, the same wiring conventions and the same drawings, so an engineer who has installed one has installed them all.
- Basix: the standard float-switch wastewater panel, single or three phase, DOL, star/delta or capacitor start.
- Basix View: Basix with a touchscreen and a 4-20mA level input for radar or hydrostatic sensors.
- Telemetrix and Telemetrix View: the same panel with remote monitoring built in and free email alerts.
- Inverter panels: one to six pumps with drives pre-programmed for flow-limited discharges.
Built from components that last

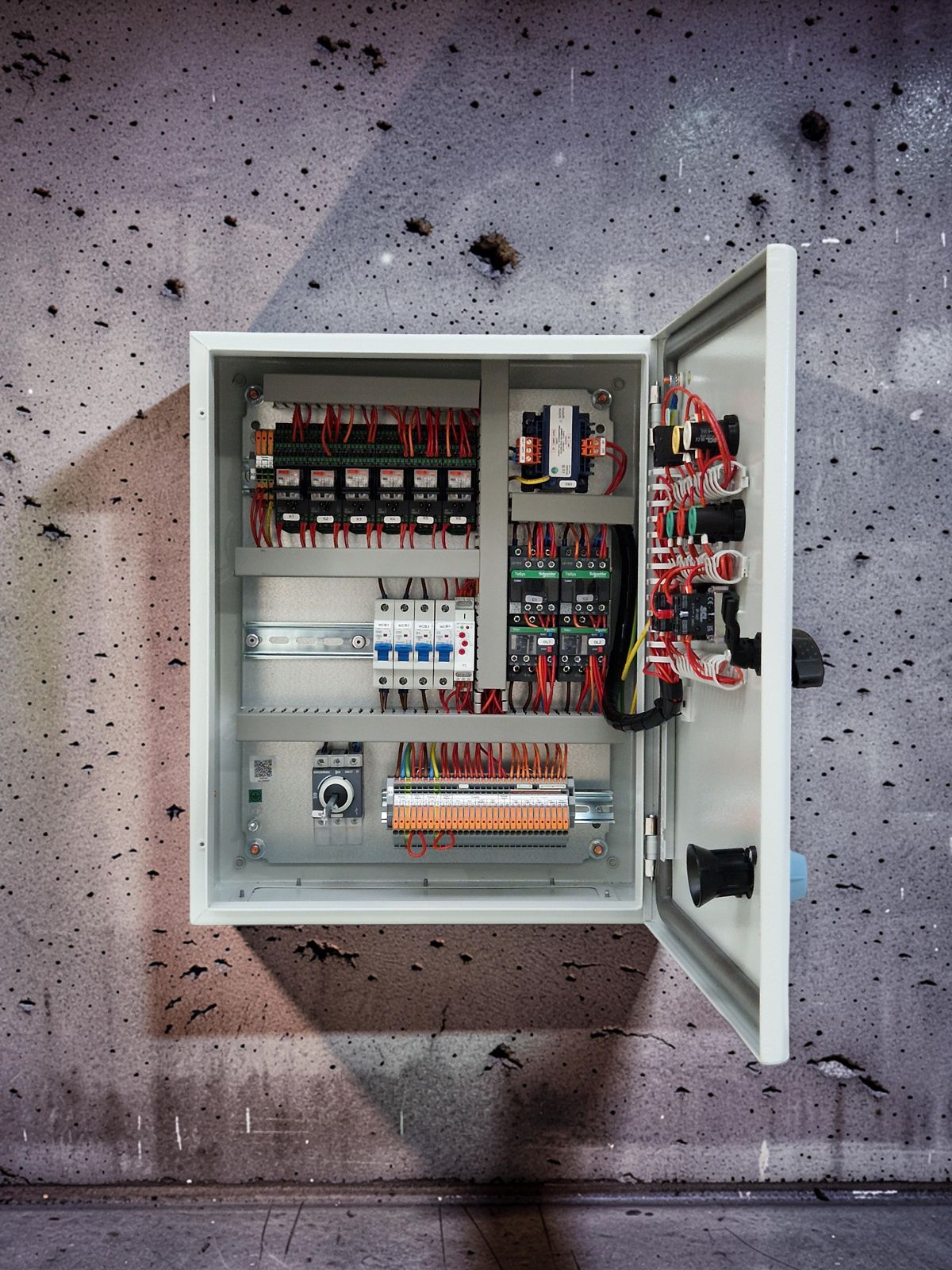

Schneider enclosures, contactors and overloads. Socomec isolators. WAGO lever terminals. Where the old stepping relay used to burn out we fit a universal stepping relay, and back it with a lifetime warranty. The isolator shaft has a guide on the back of the door so it lines up with the handle every time.
Every panel is pre-wired, labelled and tested before it leaves Stoke-on-Trent, and packed in bespoke packaging so it arrives as it left.
Level control options
All wastewater panels can be specified with four kinds of level sensing.
- Float switches: most pump stations, 1 to 20m depth, cheapest and easiest to install.
- Probes: very narrow or confined chambers, 0.2 to 1.2m, no moving parts.
- Hydrostatic sensor: hot or fatty wastewater from restaurants and hotels, 0.2 to 10m, needs a vented cable.
- Radar or ultrasonic: corrosive or fatty liquids and chemical tanks, 1.5 to 20m, no contact with the liquid.
Standard on every G&G pump panel
Control and safety
- • Hand/off/auto selector for each pump
- • Duty/assist alternation on 2 to 6 pump panels
- • Overload and short circuit protection
- • Volt-free output relays
Electrical design
- • Door-interlocked isolator
- • WAGO lever terminals
- • 24V control circuit
Build quality
- • Powder-coated mild steel, IP55
- • Fully tested before despatch
- • CE and UKCA marked
- • 12-month warranty
Installation ready
- • Pre-wired and labelled
- • Mounting holes pre-drilled
- • Full wiring diagrams supplied
Product codes
Pick the code that matches the pump set-up, give us the motor nameplate full load current, add any extras, and we quote. Higher currents and other configurations on request.
Specification
| Pumps | 1 to 6, whichever starting method |
|---|---|
| Starting | Direct-on-line, star/delta, start and run capacitor, soft start, inverter |
| Motor rating | DOL 0.63 to 24A; star/delta 4.3 to 55A; inverter 0.75 to 75kW. Larger by request |
| Supply | 1ph 230V or 3ph 400V, specify on order |
| Level control | 1 to 4 float switches as standard; probes, hydrostatic, radar or ultrasonic optional |
| Control circuit | 24V AC (24V DC on Telemetrix and inverter panels) |
| Enclosure | Powder-coated mild steel IP55; GRP polyester or stainless steel optional |
| Typical size | Enclosure sizes, plus door items: single pump 400 x 300 x 200mm; twin pump 500 x 400 x 200mm; star/delta 600 x 400 x 200mm |
| Outputs | Volt-free run, trip and high level; two 24V beacon supplies |
| Built to | BS EN 61439-2 and BS EN 60204-1; CE and UKCA marked |
Product codes: WS (1ph DOL), WT (3ph DOL), WD (star/delta), WR (capacitor start), WI (inverter). Full code tables are on the pump panels page.
Every panel ships with its wiring diagram, a test certificate and a 12-month warranty.
Price and lead time
Standard wastewater panels from £906 + VAT (single pump DOL) and £1,245 + VAT (twin pump DOL).
List price. Trade and volume discounts available.
Stock panels next working day (subject to availability). Built-to-order panels 10 to 20 working days. Larger panels can take an additional 1 to 2 weeks to design.
| Starting method | FLC per pump | Single pump | Dual pump | Triple pump |
|---|---|---|---|---|
| Direct-on-line | up to 18A | £906.40 | £1,244.54 | £2,092.65 |
| Direct-on-line | 18 to 24A | £950.02 | £1,314.56 | £2,403.94 |
| Star/delta | up to 22A | £1,046.04 | £1,864.51 | £3,044.94 |
| Star/delta | up to 31A | £1,124.79 | £2,107.57 | £3,447.15 |
| Star/delta | up to 41A | £1,258.20 | £2,342.26 | £3,636.93 |
| Star/delta | up to 55A | £1,517.09 | £2,717.27 | £4,775.60 |
Standard panels include
- • Single phase or three phase (specify when ordering)
- • Steel enclosure, IP55
- • Isolator, MCBs, contactors, overloads and control circuit including duty changeover
- • Hand/off/auto switches
- • Lamps for run, trip, high level and power on
- • High level alarm sounder and mute button
- • 24V AC output for high level beacon
- • Volt-free contacts
- • WAGO screwless terminals
All prices shown are list prices. Trade, account and volume discounts are available: ask when you request a quote. Prices exclude VAT and delivery. Issued 1 May 2026. Specifications are provisional pending sign-off of a wiring layout. Errors and omissions excepted.
Frequently asked questions
Jobs we have done with this range
All case studies →
Pump service contractor, West Sussex
Three Telemetrix panels for West Sussex County Council's landfill pumping stations
The contractor look after the pumping infrastructure at West Sussex County Council's landfill sites under a long-term asset management contract. They fitted three wastewater high-level Telemetrix panels so the council gets live status and alerts, and maintenance can be preventative rather than reactive.
Read the case study
Pump specialist, Oxfordshire
A star/delta Telemetrix panel, turned round quickly for an Oxford campus
A pumping station on a university campus in Oxford needed its control panel replaced, along with the pump and the float switches. The pump specialist specified a bespoke star/delta Telemetrix panel with remote monitoring, and the whole job, panel, floats and a new 6kW Sulzer pump, was done in a morning.
Read the case study
Pumping station specialist, South East
Telemetrix as standard across a pump service contractor's stations
The contractor refurbishes and maintains pumping stations across the South East, and now fit Telemetrix as a matter of course: three side by side at one site, four in a single week at others, six and counting. They install them and then monitor them for their clients.
Read the case studyRelated panels
Wastewater control panel
Basix
The standard float-switch pump panel: industrial components, a lifetime warranty on the stepping relay, and next-day delivery from stock.
From £906 + VAT for a single pump DOL panel and £1,245 + VAT for a twin pump DOL panel.
View Basix
Wastewater control panel with HMI
Basix View
Basix with a built-in touchscreen and a 4-20mA input, so it runs from a radar or hydrostatic sensor and shows the level on the door.
Basix panel price plus the HMI for 4-20mA input (£1,752 + VAT) and your chosen sensor.
View Basix View
Wastewater control panel with remote monitoring
Telemetrix
Industrial switchgear plus cloud connectivity over 4G, WiFi or Ethernet. Email alerts free for life; texts 10p each.
£1,798 + VAT for the dual pump DOL panel (up to 18A) and £4,300 + VAT for star/delta (up to 41A).
View TelemetrixRequest a quote for Pump control panels
Tell us the pumps or points, the supply, the site and anything the panel must comply with. Attach a spec or drawing if you have one.
“The detail, and thought that goes into making these installer and end user friendly is second to none. The best control panels we've seen, let alone had the pleasure of using. Great products.”
- Wiring diagram, test certificate and 12-month warranty with every panel
- Built to BS EN 61439-2 and BS EN 60204-1 in Stoke-on-Trent
