Controller-ready BMS gateway panel
Evometrix Gateway: a controller-ready BMS panel
One order, one panel, fully assembled and tested: 24V AC and DC supplies, surge protection, network switch, light and labelling.
£924 + VAT
Fixed price including both supplies, surge protection and switch.
3 to 5 working days
Held as a standard build.
Multiple controllers
Trend, Tridium, Distech, ISMA and more.
One order
No component chasing across suppliers.
Too often a gateway panel is assembled on site from whatever parts are to hand. The Evometrix Gateway arrives assembled and tested with both 24V supplies, surge protection, a five-port switch, a panel light and labelled terminals. Fit the controller and it is done. One purchase order instead of six, and a panel small enough for a riser.
Fits most controllers
DIN rail space and trunking to suit Trend 4NC, 415 and IQ5, Tridium JACE 9000, Distech BOS 8, ISMA MAC36 and others. Only the controller is fitted on site.
Small form factor
500mm high by 400mm wide by 250mm deep. Designed for small risers and service cupboards.
Specification
| Supply | 230V AC |
|---|---|
| Control circuits | 24V AC and 24V DC power supplies |
| Protection | Type 2+3 surge protection |
| Network | Brainbox 5-port switch |

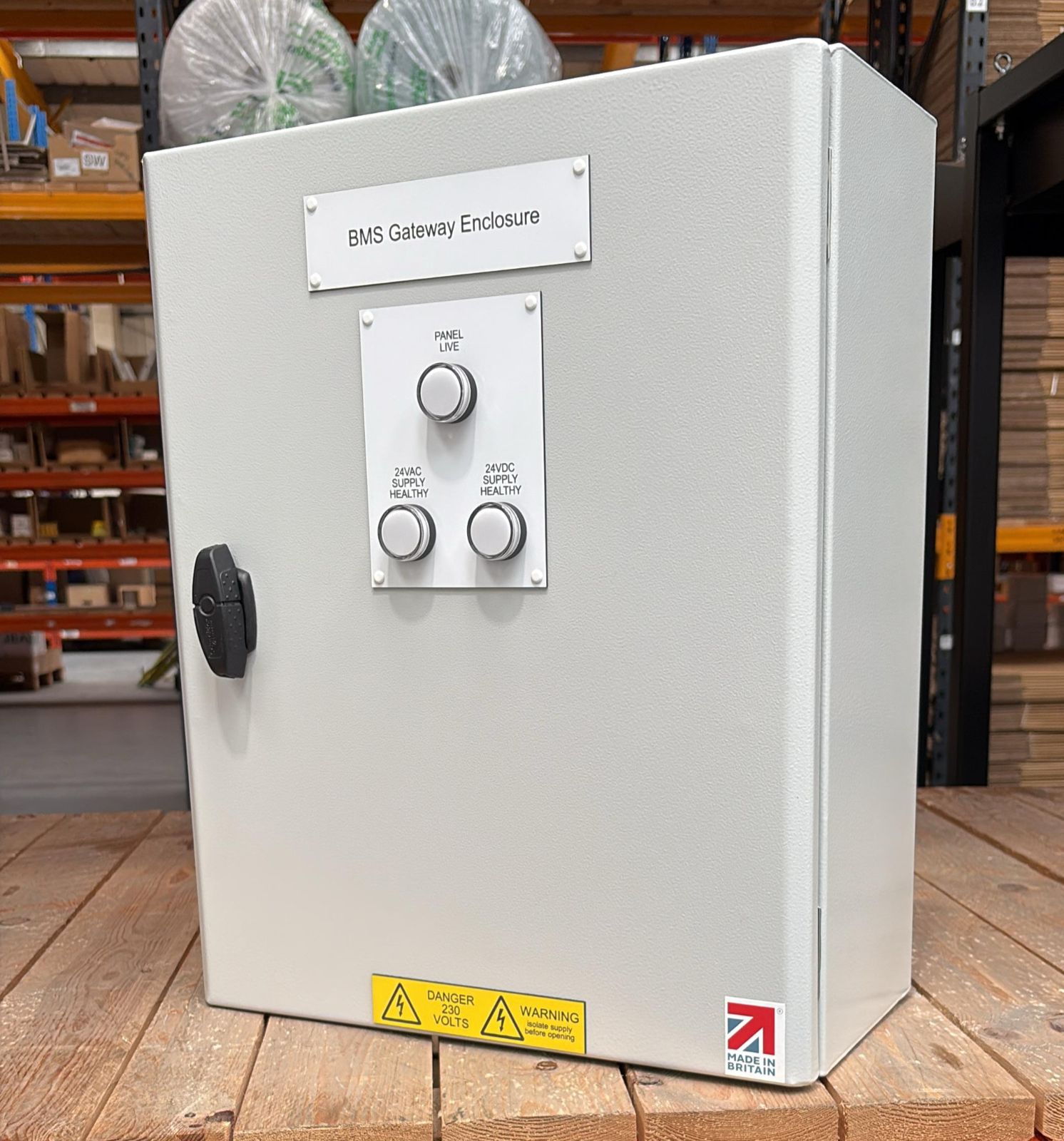

| Indication | Panel live, 24V AC live, 24V DC live lamps |
| Controllers | Trend 4NC, 415, IQ5; Tridium JACE 9000; Distech BOS 8; ISMA MAC36; others |
| Enclosure | Schneider powder-coated mild steel |
| Dimensions | Enclosure 500 x 400 x 250mm, plus door items |
| Rating | IP55, indoor use |
| Warranty | 12 months |
Every panel ships with its wiring diagram, a test certificate and a 12-month warranty.
Price and lead time
£924 + VAT, including 24V AC and DC supplies, surge protection, network switch and panel light.
List price. Trade and volume discounts available.
3 to 5 working days.
£924 + VAT
Includes 24V AC and 24V DC supplies, type 2+3 surge protection, 5-port network switch, panel light and labelling. Delivered in 3 to 5 working days.
List price. Trade and volume discounts available.
