Wastewater control panel
Basix wastewater pump control panel
The standard float-switch pump panel: industrial components, a lifetime warranty on the stepping relay, and next-day delivery from stock.
Next-day from stock
Single and dual DOL Basix panels up to 18A are on the shelf.
Lifetime relay warranty
The universal stepping relay is warranted for life. It cannot burn out like the old type.
Single or three phase
230V or 400V. Capacitor start panels for single-phase motors.
Industrial components
Schneider, Socomec and WAGO throughout.
Basix is a wastewater control panel for 1 to 6 pumps, most often single or twin, with float-switch level control. It runs on single phase or three phase, starts pumps direct-on-line, star/delta or with start and run capacitors, and is held in stock for next-day delivery. It is the panel most of our installers fit most weeks.
What you get

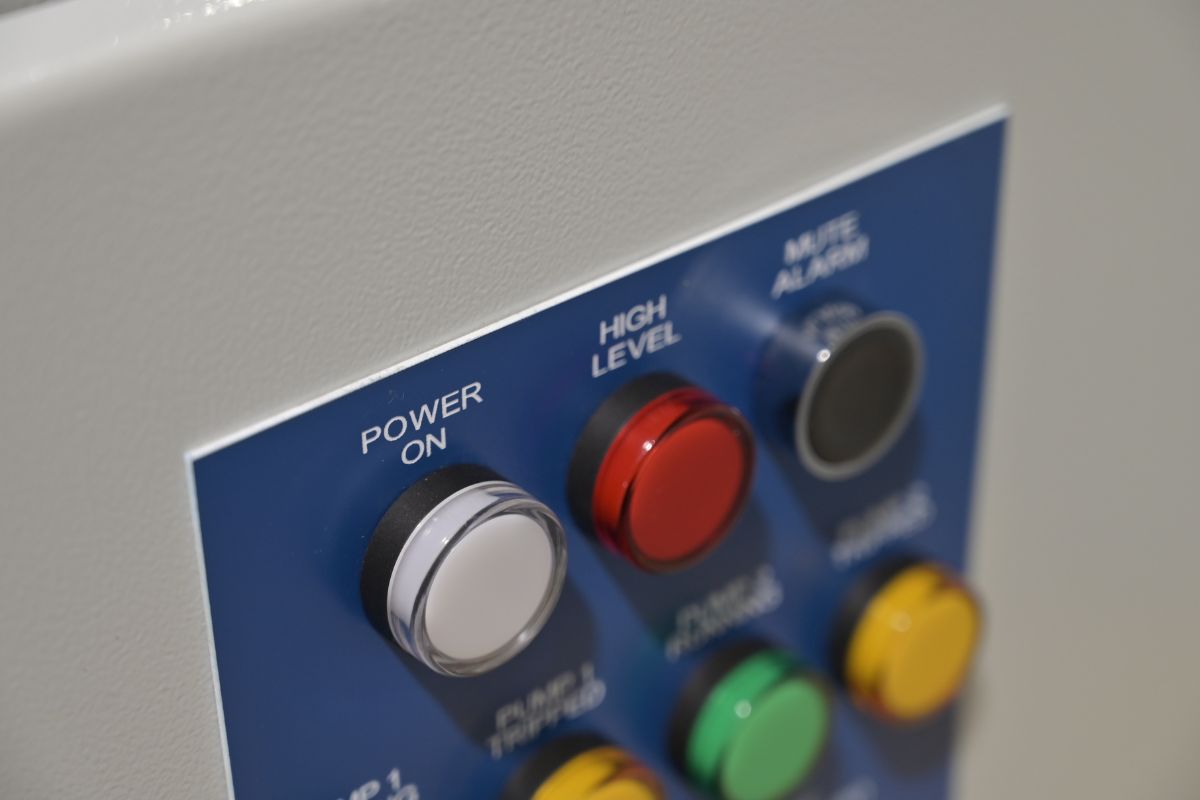

Schneider enclosure, contactors and overloads. A Socomec door-interlocked isolator with a shaft guide. WAGO lever terminals, so wiring is tool-free and does not loosen under vibration. Hand/off/auto for each pump, lamps for power, run, trip and high level, a high level sounder with mute, and automatic duty changeover so both pumps wear evenly.
Stepping relays, with a lifetime warranty
The stepping relay is the part that decides which pump is duty, and on older panels it is the most common failure of the lot: the trigger input sits across the coil and eventually cooks it. Basix uses a universal stepping relay, which takes its power and its trigger on separate terminals so the coil never overheats, and we back it with a lifetime warranty. If it fails, we replace it. Read why stepping relays fail in the knowledge hub.
Outdoors or in a kiosk

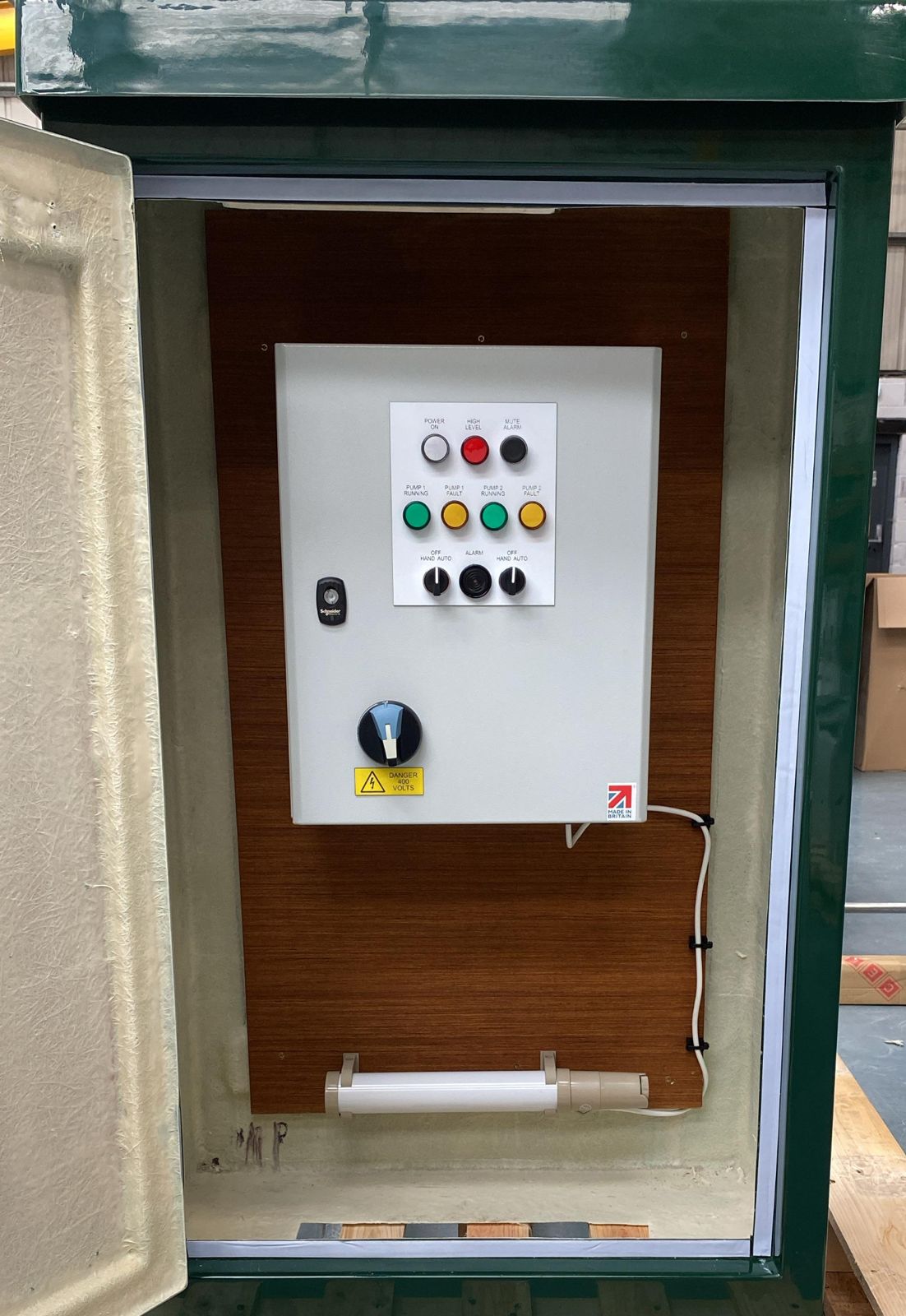

Ask for a glass-reinforced polyester (GRP) enclosure for outdoor use, or have the panel built into a single or double door GRP kiosk with a light and heater. Stainless steel is available at extra cost.
Specification
| Pumps | 1 to 6, whichever starting method. Single, twin and triple on the price list; four to six to order |
|---|---|
| Starting | Direct-on-line as standard; star/delta, capacitor start and inverter optional |
| Current rating | 1 to 18A per pump (DOL, stock); up to 24A DOL and 55A star/delta to order |
| Supply | 1ph 230V or 3ph 400V |
| Level control | Up to 4 float switches |
| Control circuit | 24V AC |
| Enclosure | Powder-coated mild steel; polyester or stainless steel optional |
| Protection | IP55 (IP66 optional) |
| Dimensions | Enclosure sizes, plus door items: single pump 400 x 300 x 200mm; twin pump 500 x 400 x 200mm; star/delta 600 x 400 x 200mm |
| Outputs | Volt-free run, fault and high level; two 24V AC beacon supplies |
| Warranty | 12 months; lifetime on the stepping relay |
Product codes: WS2xxS (1ph dual), WT2xxS (3ph dual), WD2xxS (star/delta dual), WR2xxS (capacitor). Full code tables are on the pump panels page.
Every panel ships with its wiring diagram, a test certificate and a 12-month warranty.
Options
Motor and protection
- Run capacitor
- Start capacitor
- Seal leak relay and lamp
- Over temperature
- Undercurrent protection
- MiniCAS (free-issue or supplied)
- Surge protection type 2 and 3
Controls and indication
- Ammeter
- Hours run meter
- External overload reset
- Start/stop push buttons
- Duty changeover on timer
- 24/7 timer control
- Inhibit relay
- Panel light
Level sensing
- Probe level control
- Supply of probes
- Vega radar head
- Hydrostatic sensor
- Ultrasonic controller and head
ATEX
- Intrinsically safe relays for 1, 2, 3 or 4 floats
- IS relay for a Vega head and a float
Alarms
- High level beacon
- Beacon guard
- Battery backup on alarm
- GSM alert
Enclosure and power
- GRP kiosk, single or double door
- Mounting lugs
- Panel heater and thermostat

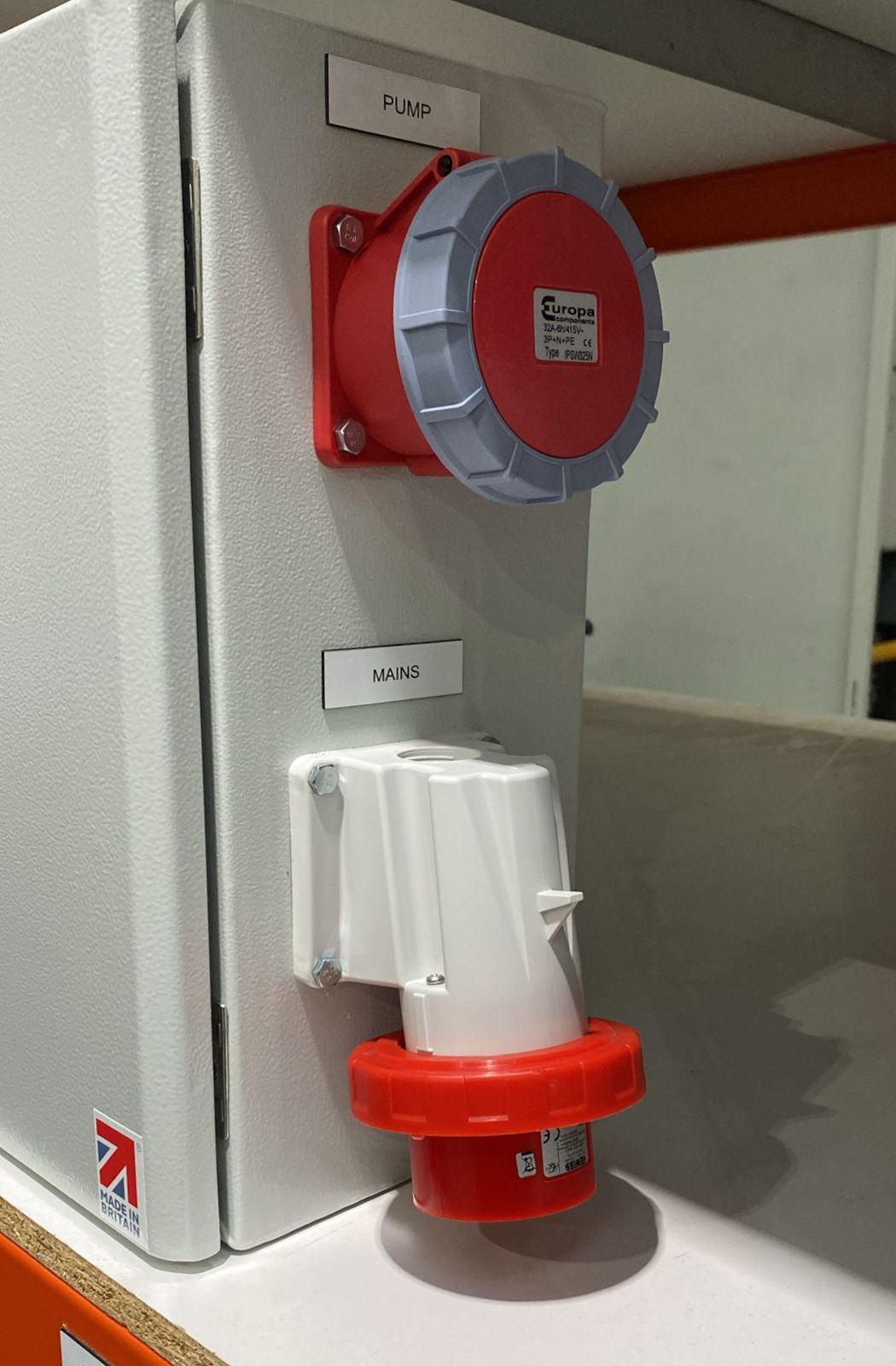

- Generator inlet 32, 63 or 125A
- 230V RCD socket
- Extra 230V output
- Transformer for 400V supply with no neutral
Options are priced on your quote, itemised, so you can see what each one adds.
Price and lead time
From £906 + VAT for a single pump DOL panel and £1,245 + VAT for a twin pump DOL panel. Options are priced on your quote.
List price. Trade and volume discounts available.
Next working day from stock for standard single and dual DOL panels, subject to availability. Panels with options are typically 10 to 20 working days.
| Starting method | FLC per pump | Single pump | Dual pump | Triple pump |
|---|---|---|---|---|
| Direct-on-line | up to 18A | £906.40 | £1,244.54 | £2,092.65 |
| Direct-on-line | 18 to 24A | £950.02 | £1,314.56 | £2,403.94 |
| Star/delta | up to 22A | £1,046.04 | £1,864.51 | £3,044.94 |
| Star/delta | up to 31A | £1,124.79 | £2,107.57 | £3,447.15 |
| Star/delta | up to 41A | £1,258.20 | £2,342.26 | £3,636.93 |
| Star/delta | up to 55A | £1,517.09 | £2,717.27 | £4,775.60 |
Standard panels include
- • Single phase or three phase (specify when ordering)
- • Steel enclosure, IP55
- • Isolator, MCBs, contactors, overloads and control circuit including duty changeover
- • Hand/off/auto switches
- • Lamps for run, trip, high level and power on
- • High level alarm sounder and mute button
- • 24V AC output for high level beacon
- • Volt-free contacts
- • WAGO screwless terminals
All prices shown are list prices. Trade, account and volume discounts are available: ask when you request a quote. Prices exclude VAT and delivery. Issued 1 May 2026. Specifications are provisional pending sign-off of a wiring layout. Errors and omissions excepted.
