Remote monitoring platform
Telemetrix Dashboard: live and historic pump station data
See every Telemetrix panel in one place: live status, pump run history, level data, alarms and smart warnings. From £6 a month, 30 days free.
From £6 + VAT a month
Up to 5 stations for £6, up to 250 for £25. Cancel any time. 30-day free trial.
Every run logged
Start, stop and duration for each pump event.
Level history
Float sequence or exact level over time from a 4-20mA head.
Smart warnings
Float sequence violations, duty issues and pumps switched off.
The Telemetrix Dashboard works with every current and future Telemetrix panel. It shows what each station is doing now, what it did yesterday, and flags behaviour that does not look right, so you only attend site when there is an actual issue.
What you can see

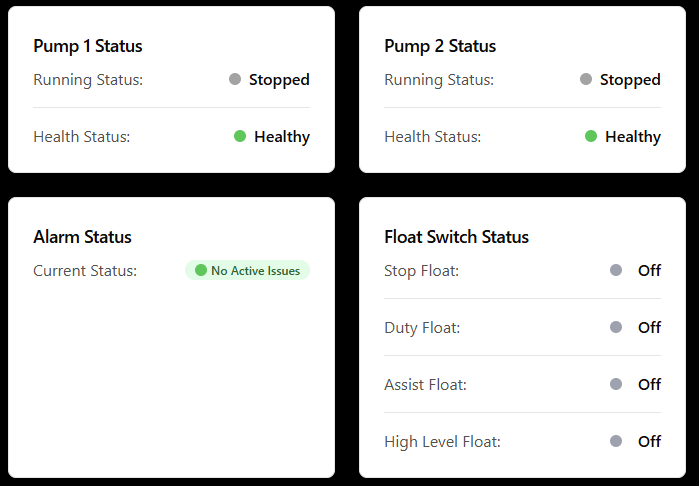

- Pump activity: trip status, running, active alarms and float or level head status, live.

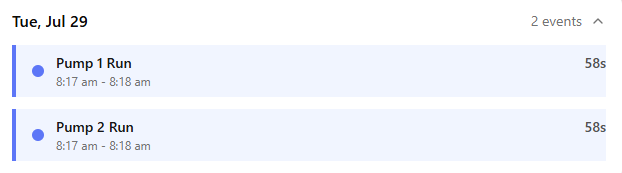

- Run data: every pump run logged with start time, stop time and duration. The quickest way to tell a real problem from an uneven day.

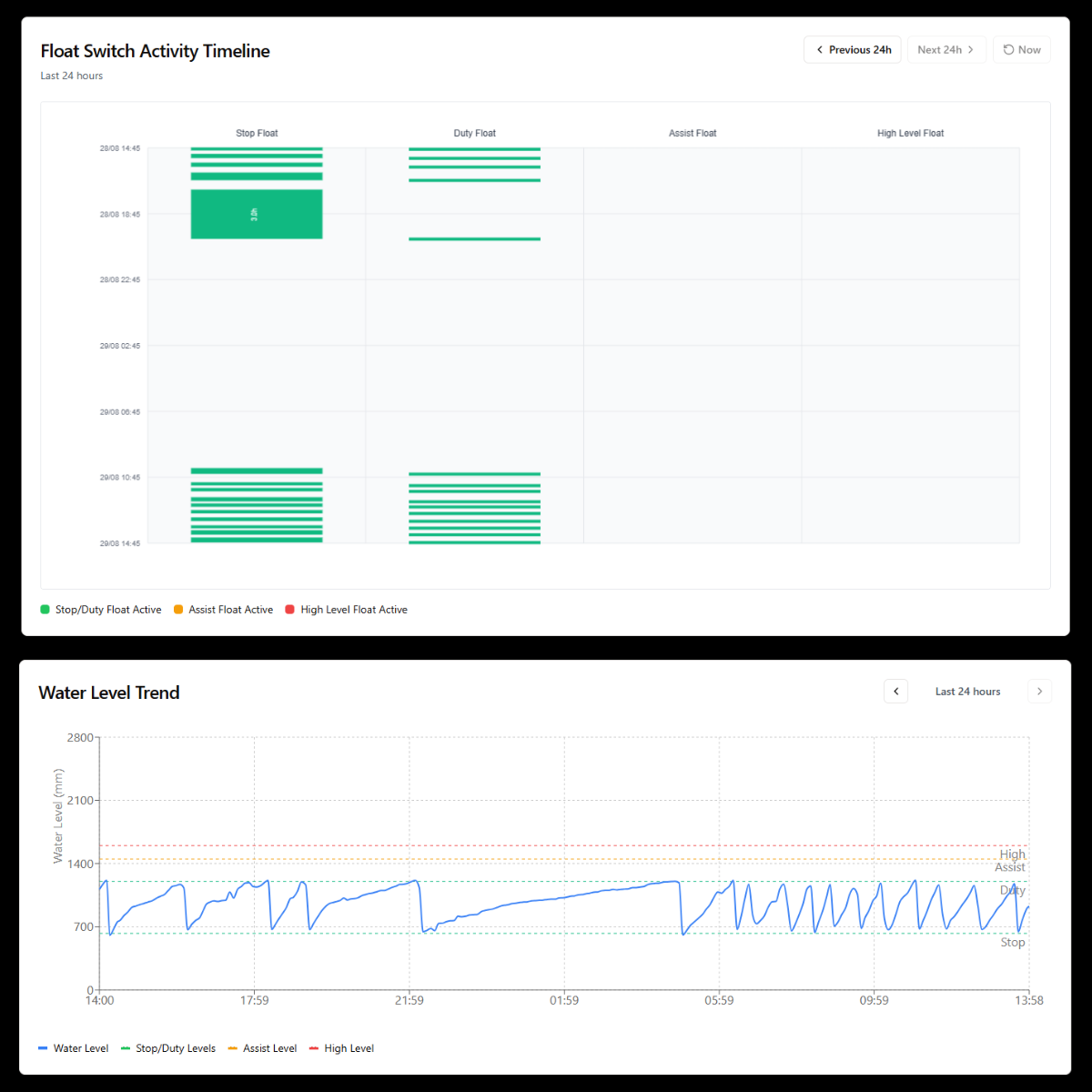

- Level data: which floats are up, and a full history of every float rising; or, with a 4-20mA head, the exact level over time including start, stop, assist and high level points.

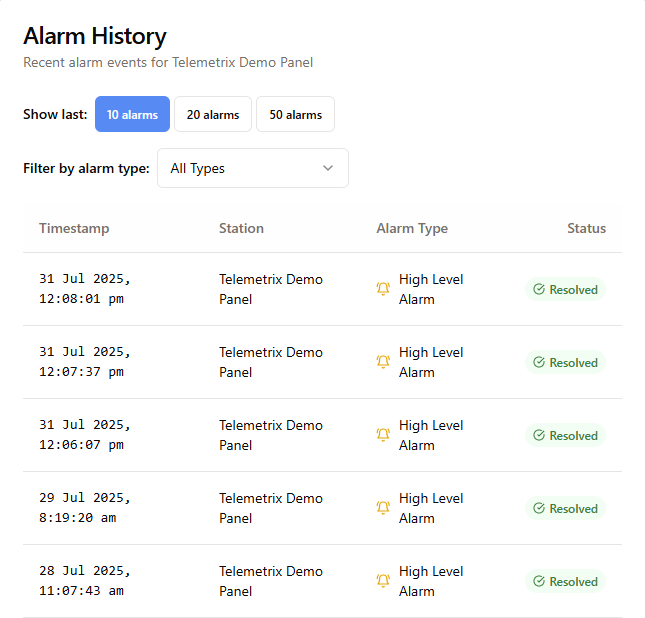

- Alarm data: every current and past alarm, filterable by type, with active or resolved status.
- Smart alerts: floats rising out of sequence, abnormally high usage, or a pump switched to off.
- Location and weather: the station on a map with current conditions and rainfall in the last 24 hours.

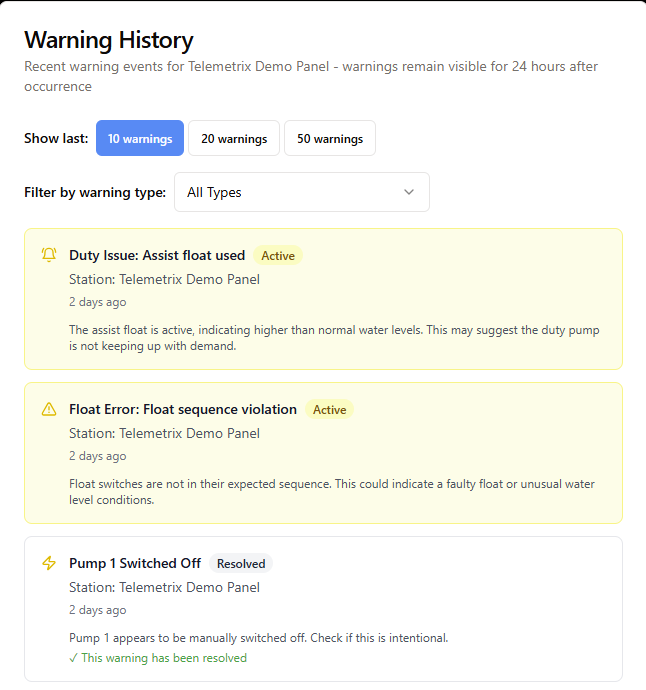

Reading the warnings
A warning that one pump is running twice as long as the other compares cumulative run time over the day. Check the run data before acting: if both pumps run two to five minutes per cycle and one simply had more cycles, that is uneven demand, not a fault. A pump consistently running 15 to 45 minutes per cycle while the other runs one to six is the pattern that needs a visit.
Getting started
Create an account, add a pump station using the P number inside the panel door, name it, and add the people who should receive notifications. The learning centre below covers each step.
Specification
| Works with | All Telemetrix and Telemetrix View panels, current and future |
|---|---|
| Access | Any browser, phone, tablet or desktop |
| Notifications | SMS and email, managed by you in the dashboard |
| Data retention | Full event history |
| Hosting | Two AWS data centres |
| Price | £6 + VAT a month for up to 5 stations; £25 + VAT a month for up to 250 |
| Trial | 30 days free |
Every panel ships with its wiring diagram, a test certificate and a 12-month warranty.
Price and lead time
£6 + VAT a month for up to 5 stations, or £25 + VAT a month for up to 250 stations. 30-day free trial, no card required.
Immediate. Create an account and add your first station today.
