Building management systems
BMS control panels for building services contractors
From a points list to a tested, documented panel. We build for BMS integrators every day and understand what site teams need.
Wiring diagram from your points list
Send the points list; we draw it, you approve it, we build it.
Test certificate with every panel
Tested before despatch. Documentation in the door pocket.
Published specification
Our minimum BMS panel specification is public. No surprises.
Outstation to MCC
500 x 400mm wall boxes to floor-standing multi-metre assemblies.

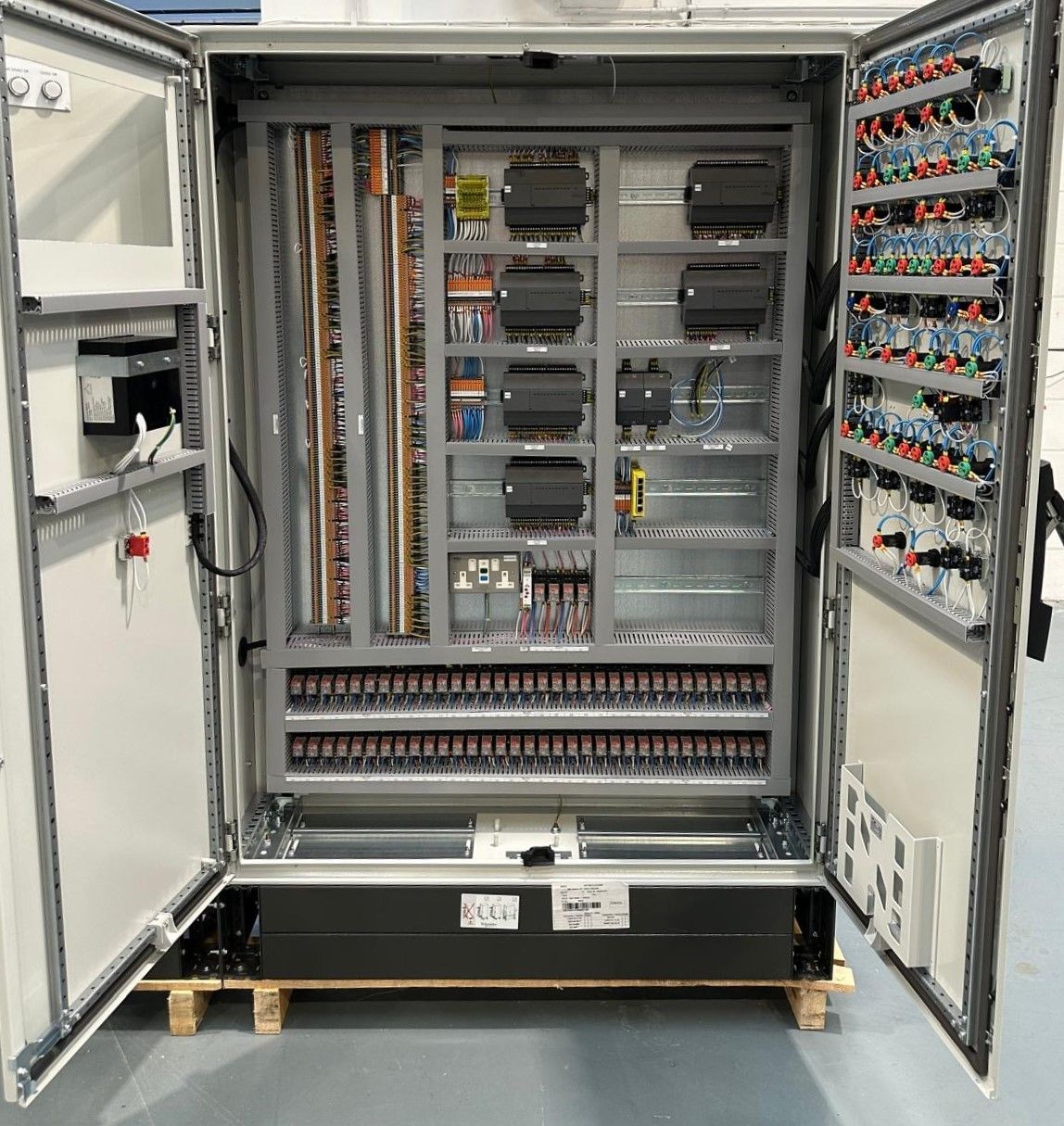

Send us a points list and we will do the wiring diagram, build the panel to your specification or ours, fit your free-issued controller and IO, test it and ship it with a test certificate. Outstation panels start at 500 x 400mm; a typical panel under 100 points is around 1200 x 1000mm; MCCs run to several metres.
How we work with integrators

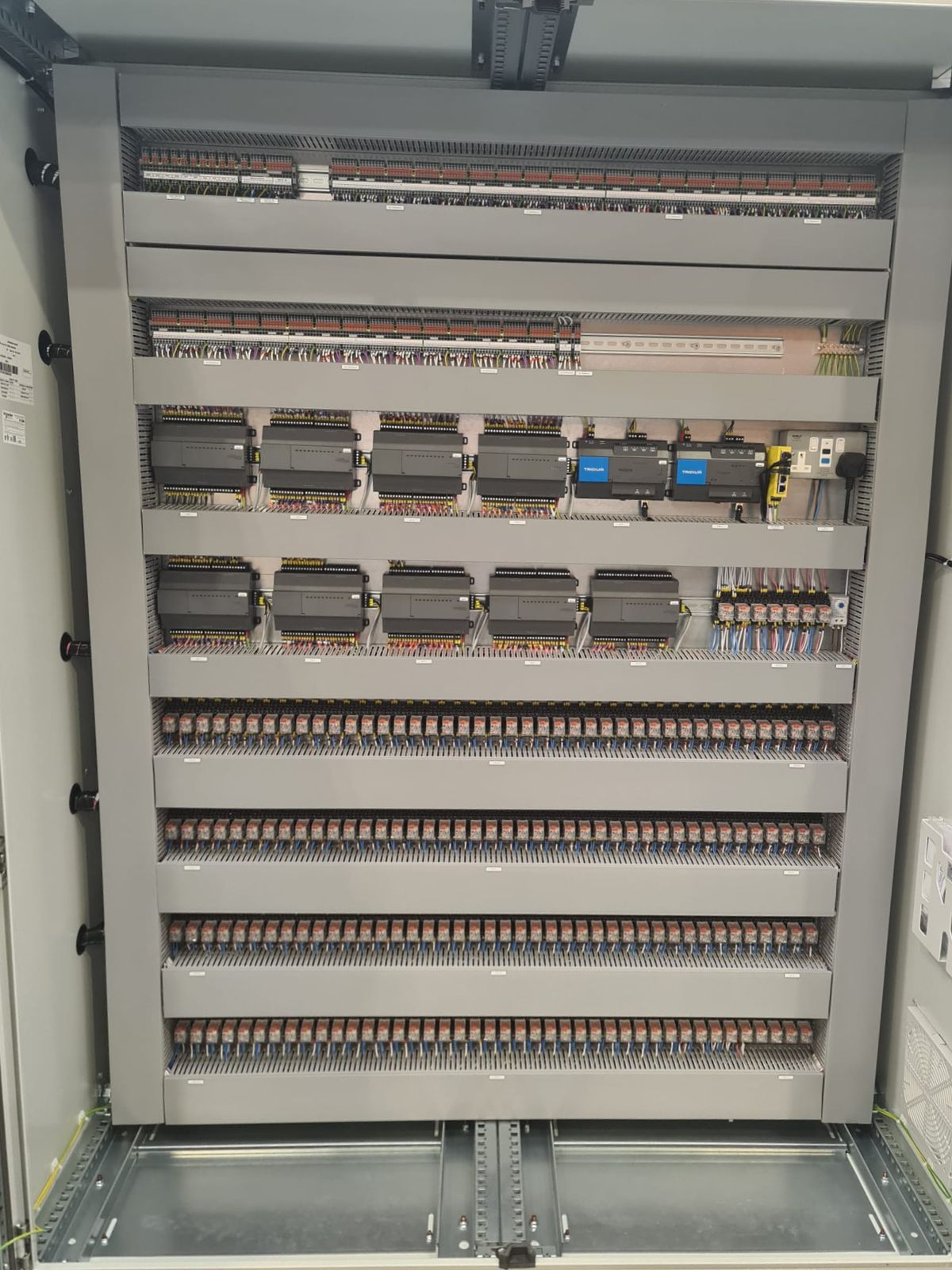

Most of our BMS customers are system integrators with their own specification. We build to it. Where there is none, we build to our published minimum specification: Schneider enclosures, 24V AC control, two transformers, tri-rated cable, ferrules on every end, WAGO screwless terminals, 10% spare space and terminals, a light in every compartment, an RCD socket and a document holder with drawings and certificates.
What you free-issue
The controller, IO modules and HMI. We supply everything else. On Evometrix panels we supply the network switch and IO too, so only the controller (and occasionally the HMI) is free-issued.
Faster: Evometrix
For standard outstation work, Evometrix is a pre-designed panel with up to 95 points, drawings in two working days and delivery in 10 to 20 working days. The Evometrix Gateway is a controller-ready panel in three to five days.
Case study: SSE Energy Solutions
We build BMS panels for SSE Energy Solutions' projects, working from their points lists to their specification. Read the case study in the knowledge hub.
Specification
| Panel types | Outstation, plant room, MCC, gateway |
|---|---|
| Controllers | Trend, Siemens, Schneider, Tridium, Distech, ISMA, Delta, Sauter and others, free-issued |
| Control voltage | 24V AC as standard; 24V DC for the controller |
| Enclosure | Schneider mild steel (indoor) or polyester (outdoor); floor standing over 100kg |
| Form | Form 1 or Form 2 to BS EN 61439-2 |
| Wiring | Tri-rated, minimum 1mm², ferruled and numbered at both ends; colour code per specification |
| Spare capacity | Minimum 10% backplate and terminals; trunking filled to 70% maximum |
| Documentation | Wiring diagram, test certificate, document holder on the door |
| Built to | BS EN 61439-2, BS EN 60204-1, BS 7671, EMC Directive |
Every panel ships with its wiring diagram, a test certificate and a 12-month warranty.
Price and lead time
Priced per panel from the points list. Evometrix standard panels and the Gateway panel (£924 + VAT) have fixed prices.
Bespoke panels typically 3 to 4 weeks from drawing approval. Evometrix 10 to 20 working days. Gateway 3 to 5 working days.
Frequently asked questions
Jobs we have done with this range
All case studies →
Butlins Skegness
One motor control centre for 64 motors in a water park plant room
The pool and water park plant room at Butlins Skegness needed a new motor control centre to run every pump, blower and feature from one place, with a BMS interface for the integrator's controllers. We designed and built it in Stoke-on-Trent.
Read the case study
Confidential London project
Every BMS control panel for a prestigious London building, from one supplier
The full BMS control panel supply package for a high-profile London building: every outstation and motor control panel across its plant rooms, designed, built and tested in Stoke-on-Trent and delivered to the contractor's programme. The client and project cannot be named.
Read the case study
SSE Energy Solutions
A Form 2 outdoor BMS panel on the roof in 12 working days
SSE Energy Solutions were refitting the third floor of Highgate Mental Health Hospital in London: new walls, heating, HVAC, electrical and controls throughout, with a new BMS tying into the trust's existing Trend network. The panel for it had to sit on the roof, and the only crane was coming down in three weeks.
Read the case studyRelated panels
Standardised BMS control panel
Evometrix
Pre-designed, pre-drawn and refined over many builds. Drawings in two working days, delivery in 10 to 20 working days, and half the programming time on site.
Fixed price per panel.
View Evometrix
Controller-ready BMS gateway panel
Evometrix Gateway
One order, one panel, fully assembled and tested: 24V AC and DC supplies, surge protection, network switch, light and labelling.
£924 + VAT, including 24V AC and DC supplies, surge protection, network switch and panel light.
View Evometrix Gateway
Equipment manufacturers
OEM control panels
Fixed BOMs, one standard platform for your range, and reliable UK production at 5 to 200 panels a month.
Fixed unit price per platform and option block, agreed at design stage and held across the programme.
View OEM control panelsRequest a quote for BMS control panels
Tell us the pumps or points, the supply, the site and anything the panel must comply with. Attach a spec or drawing if you have one.
“Normally we'd expect a 6 to 8 week lead time on a panel build. In this case it was done in 12 working days, which is a testament to G&G Controls and SSE working together.”
- Wiring diagram, test certificate and 12-month warranty with every panel
- Built to BS EN 61439-2 and BS EN 60204-1 in Stoke-on-Trent
- We reply during working hours, usually the same working day
