Float switches vs ultrasonics: choosing the right level control

When it comes to managing waste water pump control panels, selecting the right level control method is crucial for reliable operation and efficiency. The two popular options are float switches and ultrasonic sensors, each with its own set of advantages and applications. Here's a closer look at how these technologies compare and how to choose the best one for your needs.

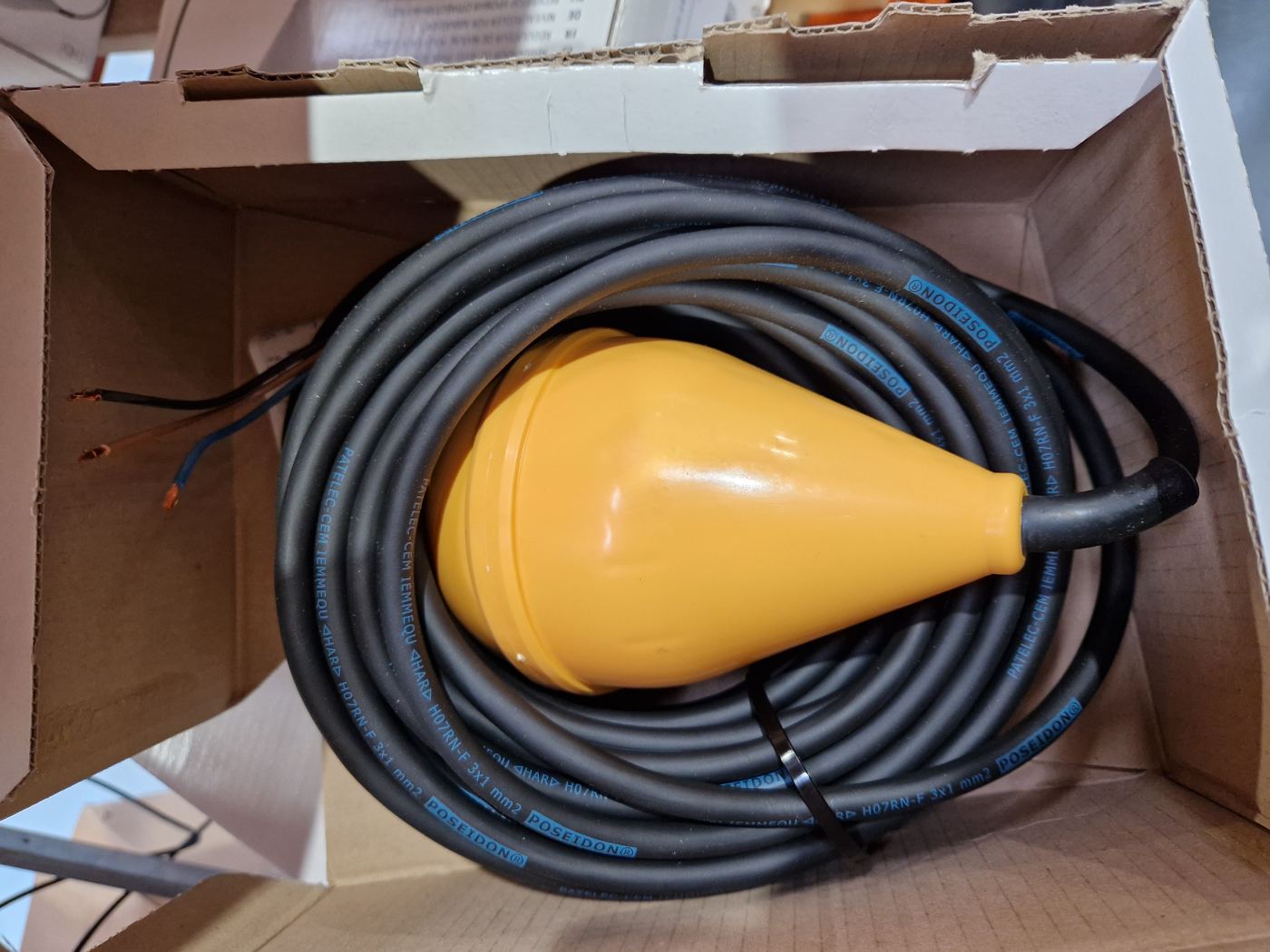

Float Switches: Proven Reliability

Float switches use a buoyant float that moves with the liquid level. As the float rises or falls, it activates or deactivates a switch mechanism, sending signals to the pump control panel to start or stop the pump.

Advantages:

1. Simplicity: Float switches are straightforward and easy to install. They have been around for decades, making them a well-understood and reliable technology.
2. Cost-Effective: Generally, float switches are less expensive compared to ultrasonic sensors, making them a budget-friendly choice for many applications.
3. Durability: They are robust and can handle a range of conditions, including dirty or debris-laden liquids, without significant performance degradation.

Disadvantages:

1. Mechanical Parts: The moving parts in float switches can wear out over time, especially in harsh environments, leading to potential maintenance issues.
2. Limited to Certain Applications: Float switches may not be ideal for very low or very high liquid levels, are too big for the smallest sumps, and can sometimes be less effective in situations with heavy turbulence or foam.

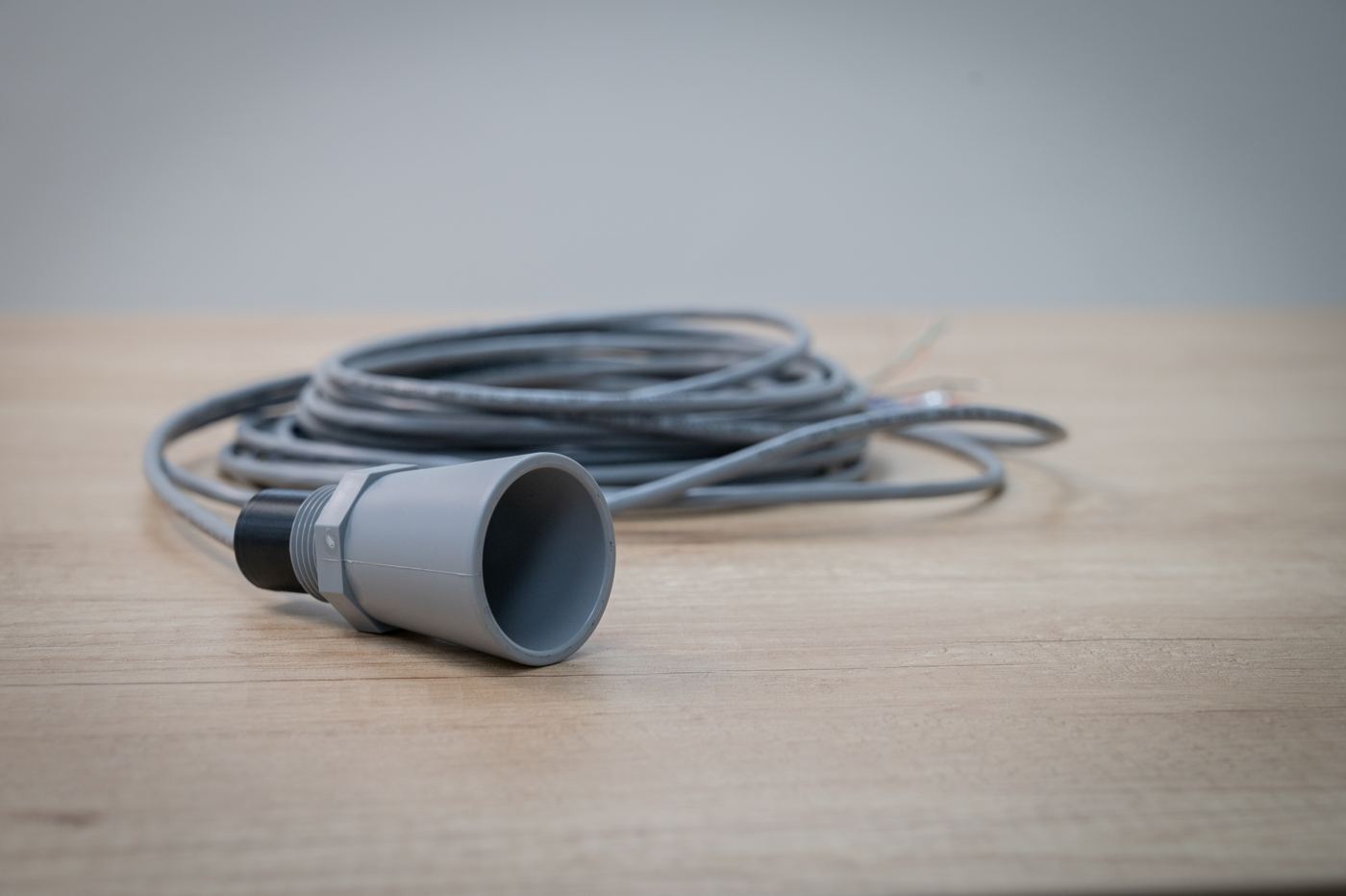

Ultrasonic Sensors: Advanced Accuracy

Ultrasonic sensors use sound waves to measure the distance between the sensor and the liquid surface. The time it takes for the sound waves to bounce back is used to calculate the liquid level, which then informs the pump control panel.

Advantages:

1. No Moving Parts: With no mechanical components, ultrasonic sensors are less prone to wear and tear, offering a longer lifespan and lower maintenance requirements.
2. Accuracy and Flexibility: Ultrasonic sensors provide precise level measurements and can be used in a variety of conditions, including high turbulence and varying liquid densities.
3. Versatility: They are suitable for a wide range of applications, from very shallow to very deep tanks, and can handle different types of liquids, including corrosive or hazardous substances.

Disadvantages:

1. Higher Initial Cost: Ultrasonic sensors tend to be more expensive upfront compared to float switches.
2. Sensitivity to Environmental Factors: They can be affected by factors such as steam, dust, or extreme temperatures, which might necessitate additional calibration or maintenance.
3. Exclusively for Proprietary Systems: Some ultrasonic sensors can only be used with the designated controller, which makes them less flexible and more expensive to maintain.

Which should I choose?

Considerations for Float Switches:

• Application Complexity: Ideal for simpler applications where mechanical reliability is sufficient.
• Budget Constraints: A good choice for projects with tight budgets.
• Environment: Suitable for environments where the float can freely move without obstruction.

Considerations for Ultrasonic Sensors:

• Accuracy Requirements: Best for applications requiring precise measurement or in challenging environments.
• Long-term reliability: Ideal if minimising maintenance is a priority.
• Versatility Needs: Useful when dealing with various liquid types or extreme conditions.

In summary, both float switches and ultrasonic sensors have their place in waste water pump control panels. Your choice will largely depend on your specific application needs, budget, and the operating environment. Float switches offer simplicity and cost-effectiveness, while ultrasonic sensors provide advanced accuracy and durability - choose sensors which have an analogue output and so can be used with any controller. Assessing these factors will help you make an informed decision and ensure the optimal performance of your pump system.
