Motor starting methods: DOL, star/delta, soft start and inverter

When designing control panels, selecting the right motor starting method is a key decision that can affect cost, reliability, and long-term performance. Here's a breakdown of the four most common methods: Direct-On-Line (DOL), Star-Delta, Soft Start, and Inverter.

1. Direct-On-Line (DOL) Starting

What it is: The simplest and most commonly used method, where the motor is connected directly to the supply via a contactor and overload relay.

How it works: When the contactor closes, full voltage is applied instantly to the motor, starting it at full speed.

Benefits:

• Very low cost
• Minimal components and easy to install
• Simple to maintain
• Simple to control, either ON or OFF.

Drawbacks:

• High inrush current (typically 6 to 10 times full load current)
• Can cause voltage dips or flicker, especially on weaker supplies
• Mechanical shock on connected equipment due to sudden start

Recommended maximum: We typically recommend a maximum motor size of 7.5kW for DOL starting to keep inrush current within acceptable limits.

Best suited for: Small pumps, fans, and simple machines where the supply can handle the initial current surge and no speed control is required.

2. Star‑Delta Starting

What it is: A two-stage starting method where the motor initially starts in star configuration (reduced voltage), then automatically switches to delta (full voltage) once it is running.

How it works:

• In star mode, the motor receives approximately 58% of line voltage, reducing current and torque.
• After a set time delay, it switches to delta mode, supplying full voltage and torque.

Benefits:

• Reduces peak starting current by approximately 30 to 60%
• Lower mechanical and electrical stress compared to DOL
• More cost-effective than soft starters or inverters for larger motors

Drawbacks:

• Not suitable for starting under heavy load due to reduced torque
• Only works on motors designed for star-delta operation (must have six terminals and appropriate winding configuration)

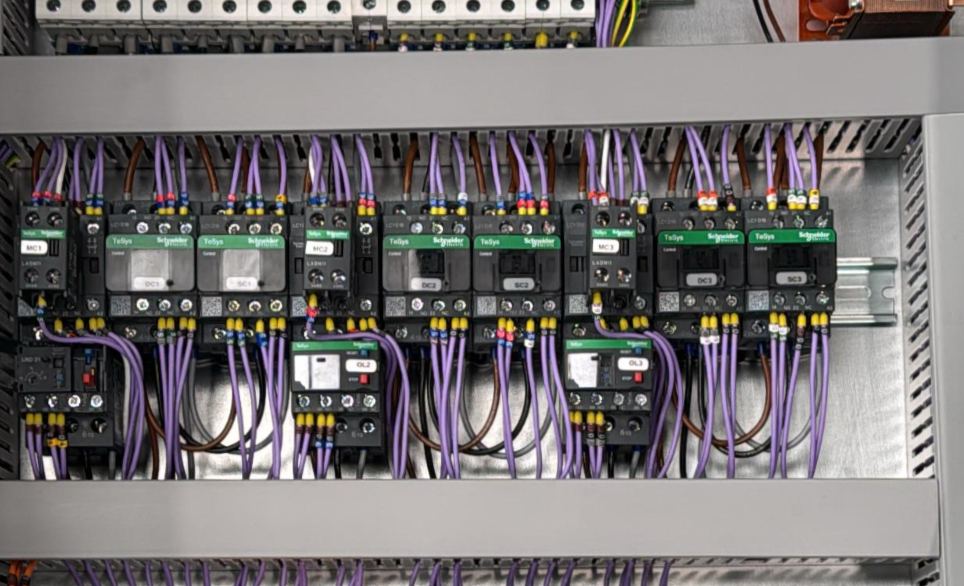

• Requires additional components: typically three contactors, an overload and a timer

Best suited for: Medium-size motors (circa 7.5kW to 50kW) that start under low or no load, such as fans or pumps with minimal resistance at startup.

3. Soft Starter (Reduced Voltage Starter)

What it is: An electronic device that limits the voltage supplied to the motor during startup, resulting in a smooth ramp-up in speed.

How it works: Using solid-state components (usually thyristors), the soft starter gradually increases voltage to the motor over a defined time period, controlling the inrush current and torque.

Benefits:

• Smooth start reduces mechanical stress and water hammer in pumping applications
• Reduces damage to pipework or valves caused by sudden shock of DOL starting
• Allows adjustment for ramp-up and ramp-down profiles
• Helps extend the life of motors, belts, gearboxes, and other equipment

Drawbacks:

• Cannot vary speed during normal running – it still provides 0–100% control only
• Higher initial cost than DOL or star-delta
• Requires careful sizing and proper cooling, particularly for frequent start-stop operations

Best suited for: Pumps, compressors, and conveyors where a controlled start reduces wear or water surge, but variable speed isn't needed.

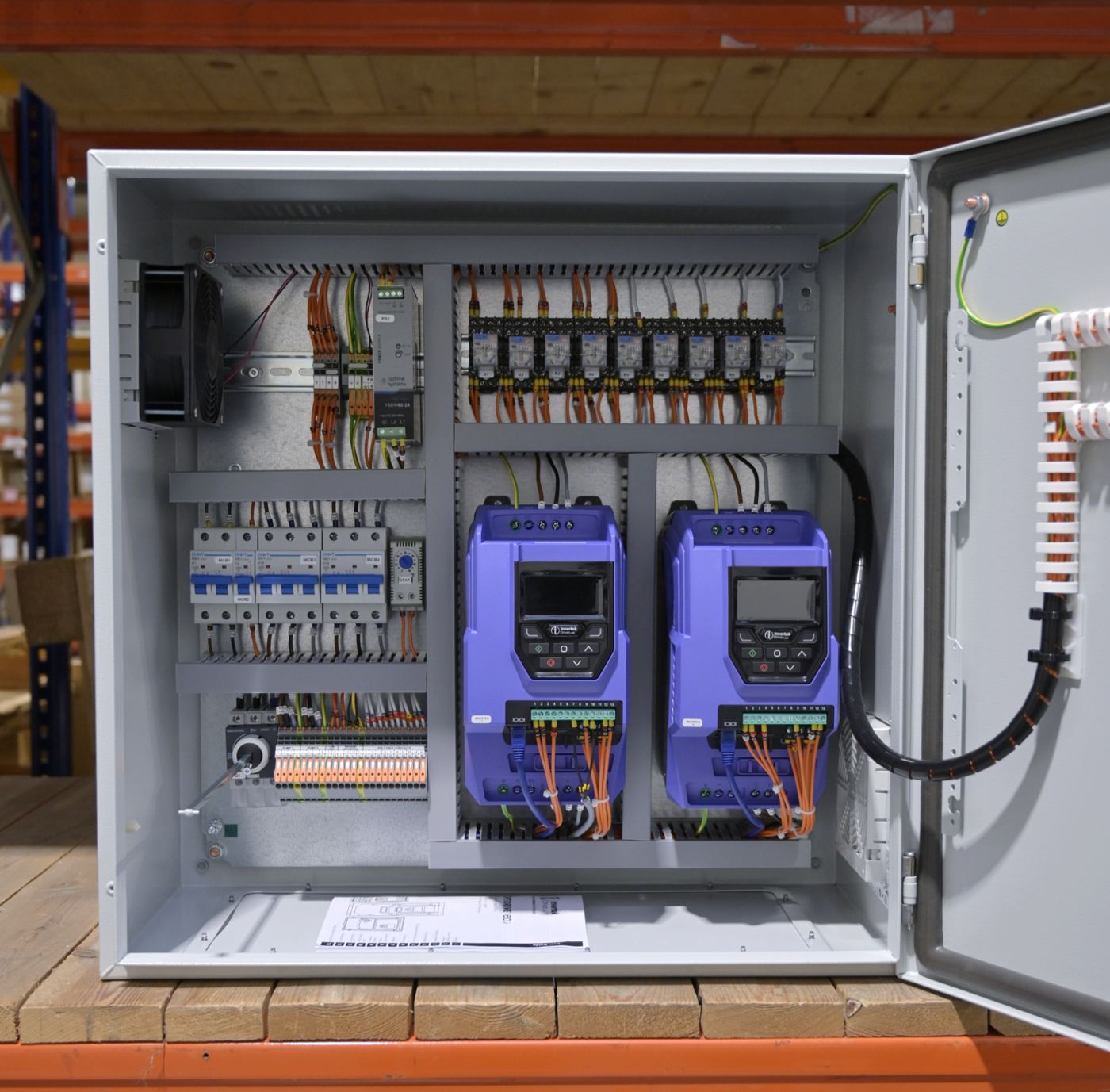

4. Inverter (Variable Frequency Drive, VFD)

What it is: A fully electronic drive that adjusts both the frequency and voltage supplied to the motor, allowing precise control over speed and torque.

How it works: Inverters convert the incoming fixed-frequency AC power to DC, then back to adjustable-frequency AC. This allows full speed control from 0 to 100%, or even beyond rated speed depending on the application.

Key advantage: Unlike DOL, star-delta, and soft starters, which are all simply 0–100% power delivery methods, inverters provide continuous, dynamic speed control. You don’t just start the motor—you control it.

Additional control flexibility: Inverters can respond to external signals, such as pressure or flow sensors. For example, if a water pressure signal drops slowly, the drive can ramp up slowly. If it drops rapidly, the inverter can respond with a fast ramp. This level of control helps maintain system stability and reduce energy use.

Benefits:

• True variable speed and torque control
• Built-in ramp-up and ramp-down settings
• Supports closed-loop control for pressure, temperature, and flow regulation
• Can improve system efficiency and reduce energy consumption

Drawbacks:

• Higher upfront cost
• Requires good EMC planning and screening of motor cables
• Power cables from inverters can interfere with communications cables
• Not all motors are inverter-rated—check insulation class and bearing protection if needed

Best suited for: Applications requiring variable speed, such as pressure-regulated pumps, HVAC fans, conveyors, or process-driven systems.
